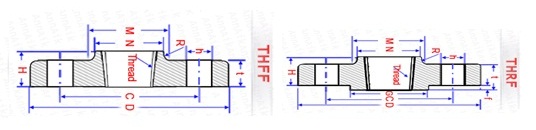

THÔNG SỐ KỸ THUẬT: DIN STANDARD - PN25 - 2567 THRF
|
Nominal
|
d1
|
D
|
t
|
C
|
H
|
M
|
G
|
f
|
N.0
|
h
|
KG
|
|
Pipe Size
|
|
10
|
17.2
|
90
|
16
|
60
|
22
|
30
|
40
|
2
|
4
|
14
|
0.63
|
|
15
|
21.3
|
95
|
16
|
65
|
22
|
35
|
45
|
2
|
4
|
14
|
0.71
|
|
20
|
26.9
|
105
|
18
|
75
|
26
|
45
|
58
|
2
|
4
|
14
|
1.03
|
|
25
|
33.7
|
115
|
18
|
85
|
28
|
52
|
68
|
2
|
4
|
14
|
1.28
|
|
32
|
42.4
|
140
|
18
|
100
|
30
|
60
|
78
|
2
|
4
|
18
|
1.87
|
|
40
|
48.3
|
150
|
18
|
110
|
32
|
70
|
88
|
3
|
4
|
18
|
2.14
|
|
50
|
60.3
|
165
|
20
|
125
|
34
|
85
|
102
|
3
|
4
|
18
|
2.85
|
|
65
|
76.1
|
185
|
22
|
145
|
38
|
105
|
122
|
3
|
8
|
18
|
3.85
|
|
80
|
88.9
|
200
|
24
|
160
|
40
|
118
|
138
|
3
|
8
|
18
|
4.8
|
|
100
|
114.3
|
235
|
24
|
190
|
44
|
145
|
162
|
3
|
8
|
22
|
6.43
|
|
125
|
139.7
|
270
|
26
|
220
|
48
|
170
|
188
|
3
|
8
|
26
|
8.77
|
|
150
|
165.1
|
300
|
28
|
250
|
52
|
200
|
218
|
3
|
8
|
26
|
10.5
|
