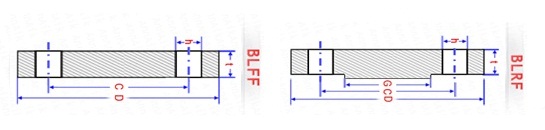

THÔNG SỐ KỸ THUẬT: PN16 - BLRF
.jpg)
|
Nominal
|
D
|
t
|
C
|
Holes
|
h
|
G
|
f
|
KG
|
|
Pipe Size
|
|
10
|
90
|
14
|
60
|
4
|
14
|
40
|
2
|
0.55
|
|
15
|
95
|
14
|
65
|
4
|
14
|
45
|
2
|
0.63
|
|
20
|
105
|
16
|
75
|
4
|
14
|
58
|
2
|
0.92
|
|
25
|
115
|
16
|
85
|
4
|
14
|
68
|
2
|
1.13
|
|
32
|
140
|
16
|
100
|
4
|
18
|
78
|
2
|
1.64
|
|
40
|
150
|
16
|
110
|
4
|
18
|
88
|
3
|
1.82
|
|
50
|
165
|
18
|
125
|
4
|
18
|
102
|
3
|
2.57
|
|
65
|
185
|
18
|
145
|
4
|
18
|
122
|
3
|
3.31
|
|
80
|
200
|
20
|
160
|
8
|
18
|
138
|
3
|
4.39
|
|
100
|
220
|
20
|
180
|
8
|
18
|
158
|
3
|
5.22
|
|
125
|
250
|
22
|
210
|
8
|
18
|
188
|
3
|
7.92
|
|
150
|
285
|
22
|
240
|
8
|
22
|
212
|
3
|
9.73
|
|
175
|
315
|
24
|
270
|
8
|
22
|
242
|
3
|
13.2
|
|
200
|
340
|
24
|
295
|
12
|
22
|
268
|
3
|
14.97
|
|
250
|
405
|
26
|
355
|
12
|
26
|
320
|
3
|
23.21
|
|
300
|
460
|
28
|
410
|
12
|
26
|
378
|
4
|
33.17
|
|
350
|
520
|
30
|
470
|
16
|
26
|
438
|
4
|
45.43
|
|
400
|
580
|
32
|
525
|
16
|
30
|
490
|
4
|
60.86
|
|
500
|
715
|
36
|
650
|
20
|
33
|
610
|
4
|
98.57
|
